Generic
Ethernet Connector-PCB-019
₹115.00
10% off
₹103.50

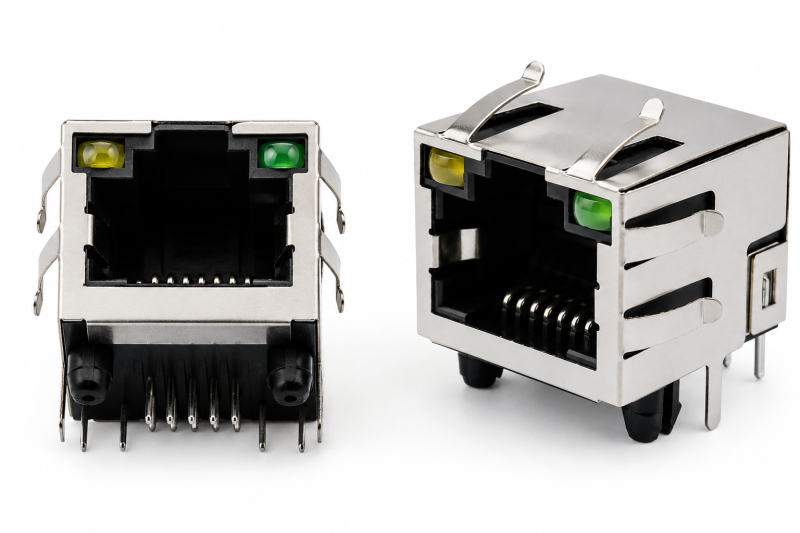

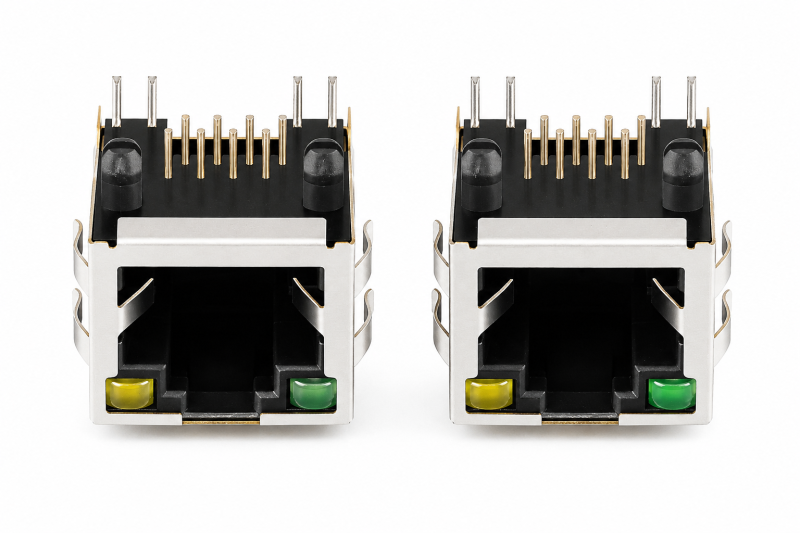

The Ethernet Connector PCB-019 identified by MPN PCB-019, is a through-hole jack connector with solder termination. It includes features like a Board Guide and Board Lock for enhanced stability. The integrated LED indicates activity with a Yellow-Green color. Constructed with Copper Alloy contacts, it operates reliably in temperatures ranging from -40°C to 85°C, making it suitable for diverse Ethernet applications.
Features:
Ethernet Connector: PCB-019 (MPN: PCB-019)
Connector Type: Ethernet
Mounting Type: Through-hole
Termination: Solder
Features: Board Guide, Board Lock
LED Color: Yellow-Green
Contact Material: Phosphor Bronze
Operating Temperature: -40°C to 85°C
Features:
Ethernet Connector: PCB-019 (MPN: PCB-019)
Connector Type: Ethernet
Mounting Type: Through-hole
Termination: Solder
Features: Board Guide, Board Lock
LED Color: Yellow-Green
Contact Material: Phosphor Bronze
Operating Temperature: -40°C to 85°C
Also available on
GST invoice details included where applicable
Courier selection available at checkout
Carefully packed for electronics components
Specifications
Product Details
- Category
- Communication & Interface
- Sub Category
- Connectors & Breakout Boards
- Brand
- Generic
- Unit
- Pc(s)
- GST Supply Type
- taxable
- Tax Method
- Inclusive
- Weight
- -
- Dimensions
- 1 x 1 x 1
Tax & Billing
GST / HSN Information
- HSN Code
- 85369090
- HSN Description
- -
- GST Rate
- 18.00%
- Warranty
- -
- Guarantee
- -
